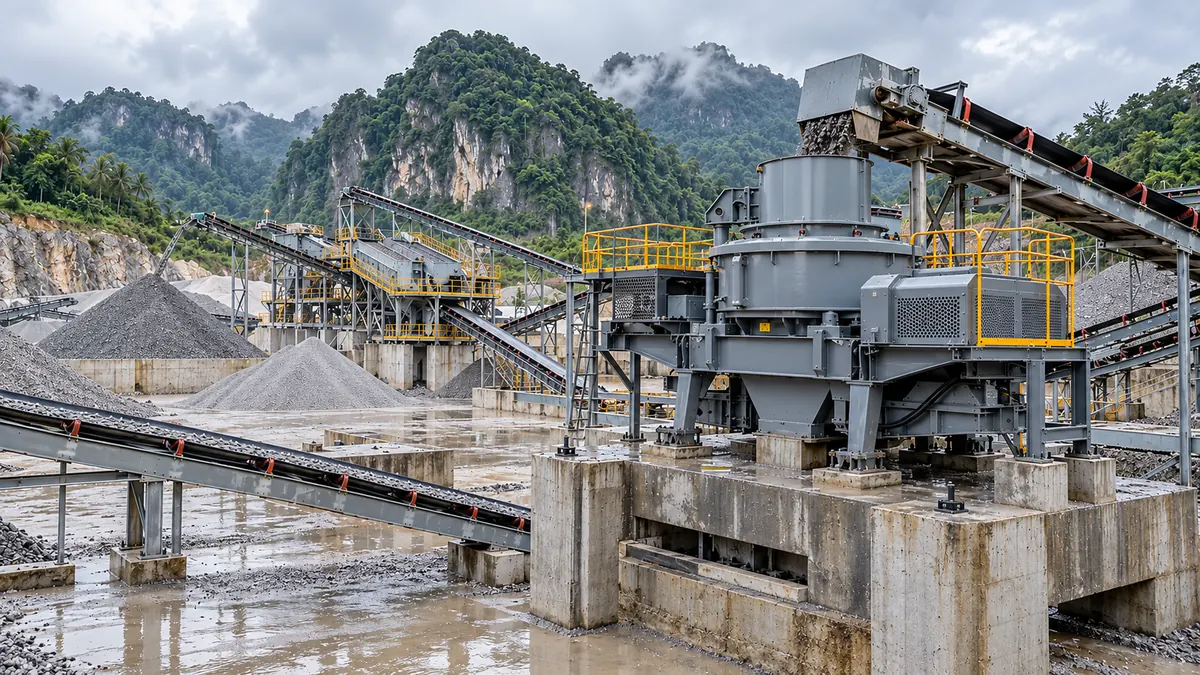

VSI Crusher Drive System: Alignment, Guarding, and Motor Base Checks

A VSI crusher drive system should be accepted only after the selected machine, motor, transmission, base, guard, electrical interface, and maintenance access are checked as one controlled package. A drive can be mechanically complete yet still be hard to inspect, unsafe to isolate, or incorrectly matched to the quoted rotor and operating arrangement. Before startup, confirm the exact model-specific drawing revision, motor and drive data, approved alignment or belt-tension procedure, base and fastener requirements, guard arrangement, isolation point, cable route, and no-load commissioning record. Do not set a universal belt tension, coupling tolerance, pulley size, or motor protection value from a generic guide; use the current supplier and motor documentation for the installed unit.

Information Gain: Treat the Drive as an Acceptance Package

Many maintenance pages advise operators to check belts or alignment. The buyer risk is earlier: a motor, transmission, base, guard, electrical supply, and access platform may be sourced by different parties, then first meet at site. This guide focuses on the handoff between quotation, installation, and commissioning. It identifies the records and interfaces that should be agreed before the drive is energized, without pretending that one setting suits every VSI model.

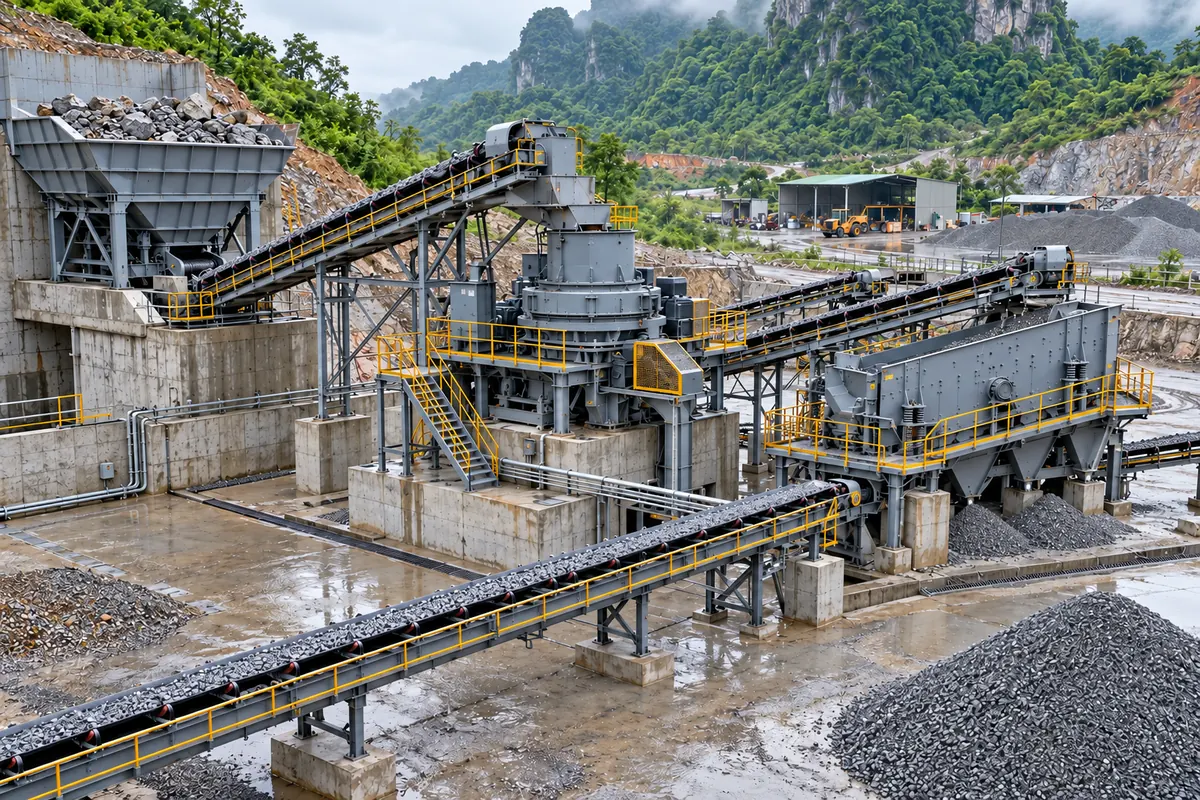

Start With the Exact Drive Arrangement

The installed drive must match the selected VSI configuration and the supplier’s current documentation. Depending on the machine, it may use a guarded belt transmission, a coupling arrangement, or another approved assembly. The transmission is not an interchangeable detail: changes to motor rating, speed, pulleys, belts, base, guard, or electrical control can change the operating arrangement and safety requirements.

Drive item	Why it must be controlled	Buyer check
VSI model, rotor, and drive configuration	Connects the drive to the quoted machine and approved operating arrangement	Confirm model, serial-number scope when available, drawing revision, units, and assumptions
Motor and electrical interface	Defines supplied motor, starting/control arrangement, and connection responsibilities	Clarify rating, enclosure, voltage/frequency, control boundary, protection responsibility, and cable entry
Transmission components	Keeps pulleys, belts, coupling parts, keys, hubs, guards, and fasteners compatible	Use the exact approved bill of materials; do not substitute by visual similarity
Motor base and adjustment range	Allows approved setup while keeping support, fasteners, and guard clearance intact	Confirm base detail, access, adjustment method, hold-down arrangement, and movement limits
Guarding and isolation	Makes routine inspection and approved maintenance possible without exposure to rotating parts	Check guard sections, secure fasteners, access method, isolation point, and reinstallation record
Commissioning records	Preserves an agreed baseline for later troubleshooting	Obtain supplier-approved installation, drive, electrical, no-load, and first-material records

The project electrical team, installation contractor, and equipment supplier should make their scope boundary explicit. A supplier can define the machine interface, but site power quality, protection coordination, isolator location, earthing, cable supports, and local safety controls usually remain project responsibilities.

Do Not Copy Settings From Another Crusher

There is no reliable universal drive-alignment value, belt-deflection force, coupling gap, pulley combination, motor current threshold, or vibration limit for every VSI crusher. The correct procedure depends on the actual motor, transmission, rotor speed, drive layout, base, support stiffness, guard design, operating condition, and supplier requirements.

Use the approved documents for the installed equipment. Qualified personnel should perform adjustment only after the project’s required isolation and verification of zero energy. Do not remove guards, alter pulleys, change belt count, fit an unapproved coupling part, or use motor-base movement to solve a process, structural, or electrical issue without the responsible supplier or engineer’s direction.

The VSI crusher commissioning checklist explains why a controlled no-load and first-material sequence is more useful than reacting to a single observation. If the circuit is overloaded or feed is inconsistent, the drive may appear to be the problem when the root cause is upstream; review the VSI feed-rate control guide before changing a drive setting.

Design the Motor Base, Guards, and Access Together

A motor base is not just a flat support. It must hold the selected equipment in the approved position, permit the documented adjustment method, keep fasteners accessible, and remain compatible with the guard and maintenance route. A guard that cannot be safely removed and reinstated, or a base that cannot be inspected after the guard is fitted, creates a predictable service problem.

1. Support and fasteners. Confirm the base, supporting steel, hold-down arrangement, adjustment hardware, and any shims or grouting method against the approved documents. Do not improvise changes after alignment.
2. Guard geometry. Check that fixed and removable guard sections cover the rotating transmission as specified, attach securely, and leave no unintended opening after installation.
3. Inspection route. Confirm the approved isolation point, stairs or platform, lighting, handrails, and space needed to inspect or reinstall guards without crossing active conveyor routes.
4. Cable and services route. Coordinate motor cable entry, trays, earthing, controls, drainage, and cleaning access before final steel or concrete blocks a safe route.
5. Adjacent equipment interfaces. Verify feed/discharge chutes, platforms, screens, conveyors, and dust connections do not obstruct the drive, motor cooling path, guard, or service route.

The VSI foundation and installation checklist is useful here because the drive acceptance starts with a stable, accessible equipment-and-civil interface—not with a last-minute motor adjustment.

Use a Controlled Installation and Start-Up Sequence

The supplier’s current manual and the project method statement govern the work. A practical coordination sequence is to verify equipment identity and drawings, establish the approved mechanical installation, complete electrical and guard checks, record the no-load condition, then commission with material under controlled feed conditions. Each stage should leave a record that the buyer can hand over to operations.

Stage	What to verify	Do not use it to prove
Before mounting	Equipment identity, drawings, packing list, motor/drive components, preservation condition, and approved site interfaces	That a similar prior installation has the same requirements
Mechanical installation	Base condition, permitted adjustment, supports, fasteners, transmission assembly, guard fit, and access	That site personnel may choose their own tension, alignment, or coupling values
Electrical completion	Isolation, earthing, cable route, control interface, rotation-check procedure, and protection responsibilities	That a generic protection setting is correct for this motor and site supply
No-load checks	Guard condition, response path for abnormalities, lubrication/interlocks where applicable, and record forms	Final material throughput or product quality
First material	Feed condition, operating sequence, normal data capture, product samples, screen performance, and return load	That one short run confirms lifetime reliability

If an abnormal sound, odor, visible movement, guard contact, unexpected electrical indication, or other unsafe condition appears, follow the site’s stop, isolate, and escalation procedure. Do not troubleshoot a rotating drive through a guard opening or restart simply to obtain another observation. The bearing temperature and lubrication guide shows why indicators must be interpreted with approved limits, operating state, and the complete machine condition.

Specify the Drive Scope in the Purchase Order

The best time to prevent a drive-scope gap is before the order is placed. A quotation should make clear whether the offered price includes the motor, motor base, transmission parts, guard, local isolator, cable and tray, electrical controls, sensors, field wiring, installation supervision, startup assistance, spare belts or coupling components, and commissioning records.

Use a scope matrix with the supplier and site team. It should identify who supplies each item, who installs it, who approves substitutions, who provides the final settings and drawings, and who signs the commissioning record. This is especially important when a crusher package, steelwork package, electrical package, and site contractor are purchased separately.

For an operating spares plan, do not stock parts merely because another machine uses something similar. Tie each spare to the installed model, motor/drive configuration, drawing revision, and verified supplier part number. The VSI spare-parts inventory guide explains why machine identity and lead-time risk should control the list.

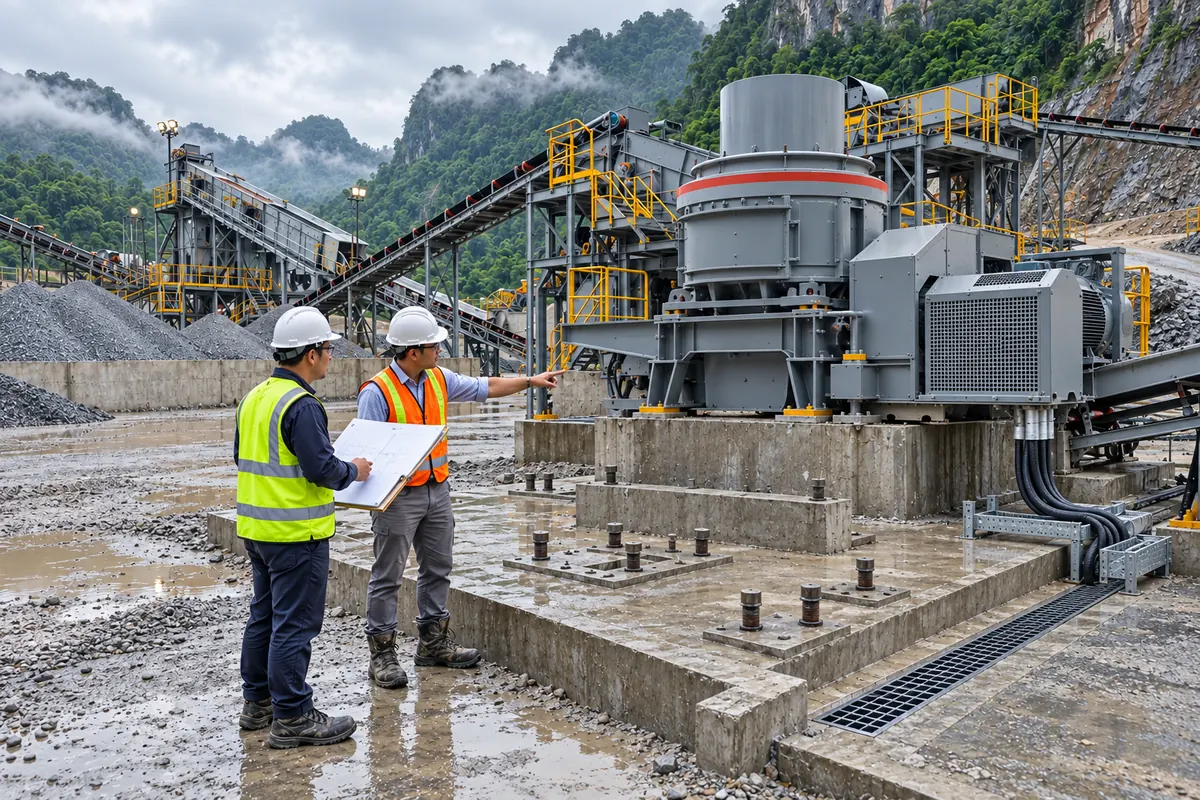

Buyer Checklist Before You Energize the VSI Drive

• The selected VSI model, rotor/drive configuration, motor, and transmission arrangement are identified on current supplier documents.
• The motor base, supports, fasteners, allowed adjustment method, guard, and maintenance clearances match the approved arrangement.
• Required guarding is installed and can be removed/reinstalled only through the approved isolated maintenance process.
• Electrical supply, control, isolator, earthing, cable route, protection responsibility, and rotation-check procedure have assigned owners.
• No pulley, belt, coupling, motor, guard, or control component is substituted without documented compatibility approval.
• The site has a supplier-approved installation and commissioning checklist for the exact unit.
• Operations receives records to distinguish a feed/process issue from a drive, electrical, or installation issue.

What to Send for a VSI Drive-System Proposal

Send the raw material, feed size, output sizes, required capacity, process flow, site photos, current or proposed VSI model, available voltage and frequency, control preference, layout/elevation constraints, installation access, maintenance platform details, local safety requirements, delivery destination, schedule, and budget range. Also state whether you need a complete drive package, electrical controls, steelwork, installation supervision, commissioning support, or only spare/retrofit parts.

That information lets the supplier define the model-specific drive interface and lets the project team price the full installed scope instead of treating the motor, guard, and electrical work as unexplained extras.

FAQ

Does every VSI crusher use belts?

No. The approved drive arrangement depends on the selected VSI model and its manufacturer documentation. Confirm whether the quoted unit uses a belt transmission, coupling, or another arrangement, then use matching parts, guards, and installation procedure.

Can I use the same belt tension or coupling setting as another crusher?

No. Use the current procedure for the exact installed motor, transmission, and VSI configuration. A setting from another machine may have different components, geometry, speed, support conditions, or safety requirements.

Who should align a VSI crusher drive?

Qualified personnel working under the project’s isolation and safety controls should follow the OEM-approved procedure. The buyer should ensure the scope includes the needed documents, access, tools, records, and responsible parties.

Why does the motor base matter?

The base locates the motor, supports approved adjustment, retains the hold-down arrangement, and affects guard fit and service access. It must match the selected drive package and supporting structure.

Can I run the crusher briefly with the drive guard removed?

Follow the supplier’s and site’s approved safety procedure. A buyer should not assume an unguarded test is acceptable; rotating drive components require the specified guard and isolation controls.

What should be included in a VSI drive quotation?

Clarify the motor, transmission, base, guard, isolator/control boundary, cables and field wiring, electrical protection responsibilities, installation scope, spare parts, documents, and commissioning support. Record who supplies and approves each item.

Is high motor load always a drive-alignment problem?

No. Feed condition, rotor condition, process load, electrical supply, controls, and mechanical installation can all affect observations. Use the approved diagnostic procedure and do not change a drive setting before checking the controlled system.

What records should remain with operations after commissioning?

Keep current drawings, equipment identity, approved drive procedure, installation/commissioning records, electrical responsibility matrix, guard/access record, spare-parts list, and any supplier-approved operating baseline.
