VSI Crusher Receiving, Storage, and Pre-Installation Inspection Checklist

After a VSI crusher arrives, the receiving team should document the delivered scope and condition before unloading is signed off, then protect the equipment until installation. A practical handover links the purchase order and packing list to package counts, visible condition, photographs, exception notices, custody, and the supplier’s current storage instructions. Before the crane returns, confirm the approved unloading method and laydown area; before installation starts, confirm that the machine, loose parts, documents, foundations, interfaces, and preservation status still match the approved plan. Do not treat a clean-looking machine as proof that it is ready to run: final alignment, energization, feed, product, and performance checks belong to the controlled installation and commissioning process.

Information Gain: Control the Custody Gap Between Delivery and Installation

Many delivery notes only show that a truck reached the gate. The useful buyer control is the custody gap between carrier handover and mechanical installation: identify what arrived, record its condition, preserve it for the actual storage period, and release it only when all known interfaces are ready.

That boundary prevents a missing loose item, water-affected electrical component, unrecorded impact mark, mixed package, or expired preservation condition from becoming an unowned installation delay. A pre-shipment review is still essential; see the VSI crusher factory acceptance test checklist for the earlier factory-side evidence. Receiving inspection does not replace it—it connects that evidence to the site handover.

Prepare the Receiving Plan Before the Delivery Reaches Site

The site team should agree the receiving sequence before dispatch or at least before the vehicle enters the unloading area. The approved lift plan, carrier instructions, equipment documents, site traffic rules, weather limits, exclusion zones, and laydown arrangement must be coordinated by the responsible people. Use only the supplier-approved lifting points and current handling instructions for the ordered equipment; do not infer a rigging method from a photo or a similar crusher.

Receiving control	What to prepare	Why it matters
Delivery identity	Purchase order reference, shipping notice, package list, equipment identification method, and expected loose-item list	Lets the receiver distinguish an incomplete delivery from an unfamiliar package arrangement
Safe unloading	Approved lifting/handling method, competent personnel, suitable ground, exclusion zone, traffic control, and weather decision	Prevents the delivery schedule from driving an unsafe lift or an unsupported temporary placement
Laydown area	Clearly assigned, stable, drained, accessible storage location with the protection required by supplier documents	Reduces later moves, standing water, uncontrolled access, and mix-ups between packages
Evidence record	Receiving sheet, photographs, condition record, carrier reservation process, and exception-log owner	Makes a visible issue traceable before packaging is removed or the carrier leaves
Installation link	Current foundation, general arrangement, interface, electrical, access, and preservation documents	Stops stored equipment being treated as ready when a key interface is still unresolved

The foundation and installation civil-work checklist should be reviewed in parallel. It helps the project team keep delivery storage separate from final installation release: a prepared laydown area is not evidence that foundations, embedments, drainage, access, or cable routes are ready.

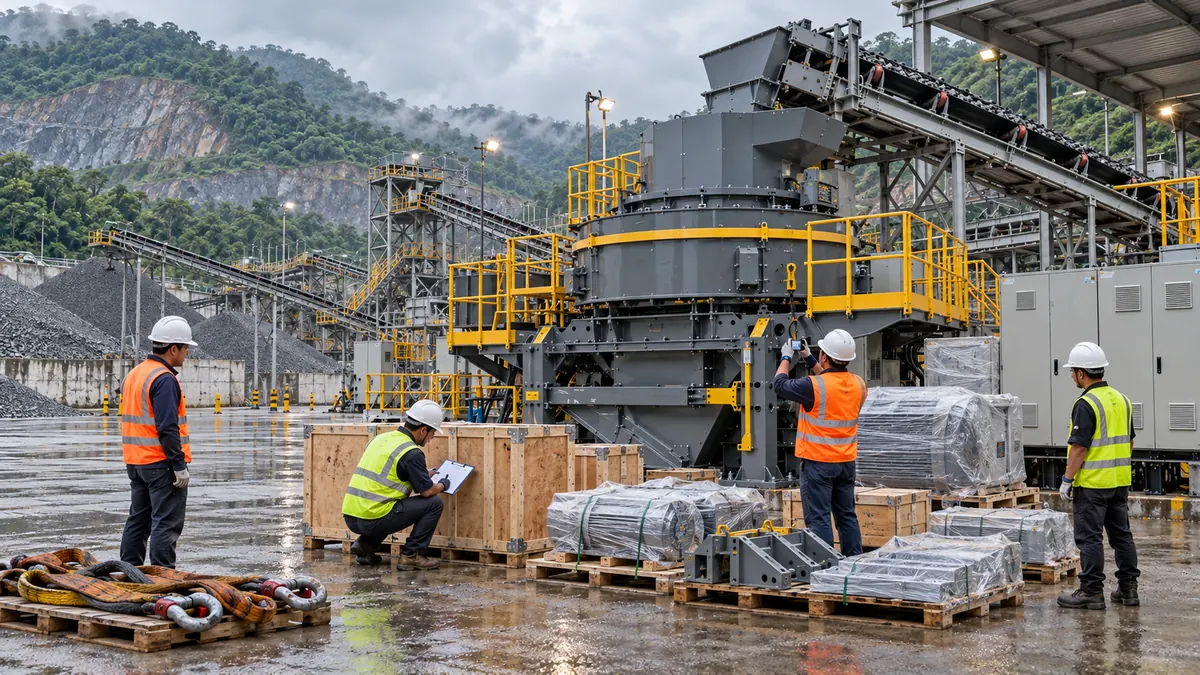

Receive the Scope and Condition Before the Carrier Leaves

Start with an identity-and-condition record, not an immediate unpacking exercise. Compare the visible package count, equipment identification, and accessible labels or marks with the shipping documents and agreed supply list. Photograph each major unit and package from enough angles to show its delivered state, including any visible impact, moisture ingress, torn wrapping, loose restraint, open crate, corrosion, or missing protective cover.

If an item appears missing, damaged, or inconsistent, preserve the evidence and follow the carrier, insurer, contract, and site-notification process that applies to the project. A receiver should not decide unilaterally that a discrepancy is harmless. Record the observation, date and time, relevant package or equipment reference, photographs, temporary protective action, and the person responsible for the next decision.

Area to check	What can be recorded at receiving	What should not be assumed
Main VSI assembly	Visible transit condition, outer covers, accessible guards, restraints, identification, and obvious impact or contamination	Internal condition, rotor setting, alignment, or operating performance
Drive and electrical items	Package identity, intact wrapping or seals, dry condition, apparent damage, and storage orientation stated in the documents	That electrical equipment is suitable for energization after any unverified storage period
Loose parts and spares	Package count, part-reference evidence where accessible, protective packing condition, and designated storage location	That a generic crate or spare list belongs to the delivered machine without document matching
Documents	Packing list, preservation/storage guidance, drawings, manuals, delivery record, and project-specific certificates supplied	That a preliminary or generic document matches the final ordered configuration

An arrival photograph does not have to disclose confidential serial details publicly. The project record can retain the identification evidence within its normal document-control process. What matters is that the equipment, its documents, and the exception log refer to the same delivery.

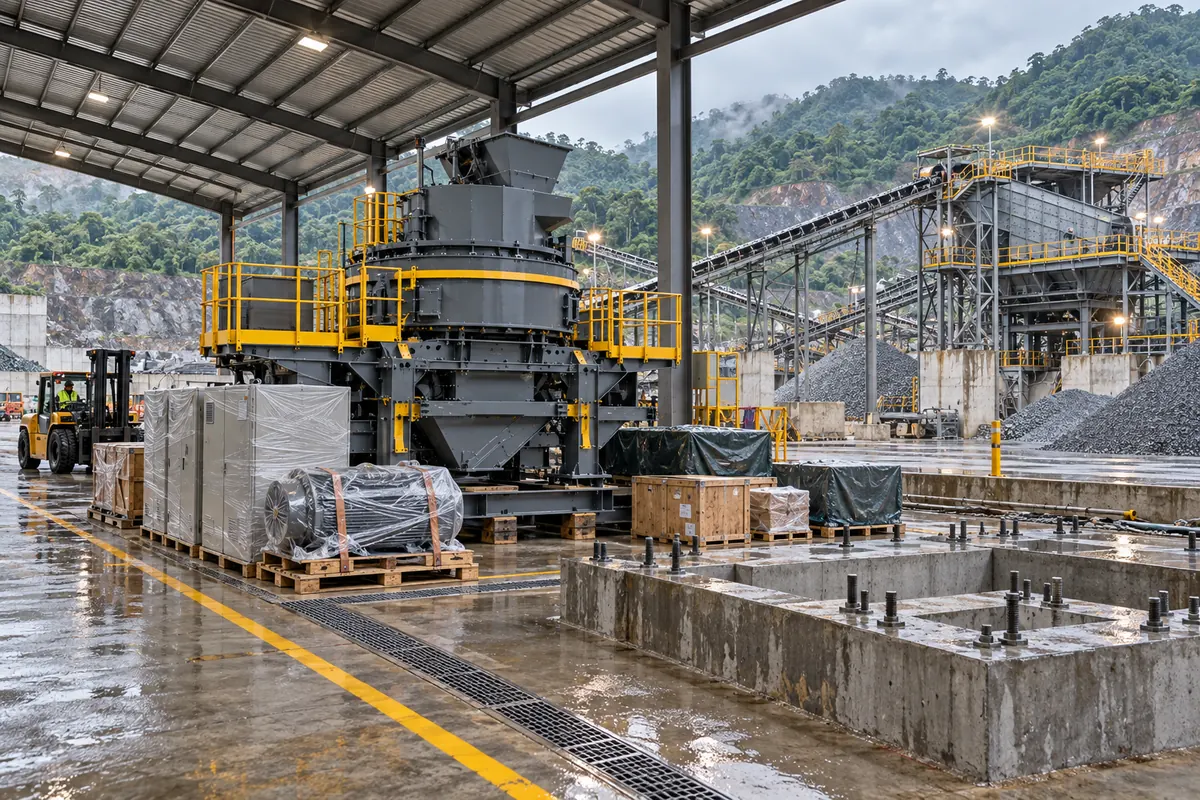

Store the VSI and Loose Items to the Current Supplier Instructions

Storage is not one generic rule for every VSI, motor, sensor, panel, or wear-part package. Follow the current storage, preservation, and inspection instructions supplied for the selected model and accessories. Confirm who owns periodic checks, how long the planned storage will last, what environmental conditions are expected, and what action is required if wrapping, desiccant, coatings, covers, or other protective measures are disturbed.

The laydown arrangement should keep identifiable packages accessible for inspection without exposing them to unnecessary movement or damage. Protect equipment from standing water, uncontrolled traffic, contamination, and site work that could affect it. Retain the approved access, lifting, and preservation clearances rather than stacking accessories in a way that hides package identity or blocks inspection.

For a prolonged or changed storage period, ask the supplier for the applicable inspection and re-preservation requirements in writing. Do not create a universal lubrication interval, electrical test, rotation routine, or cover specification from a web article. Those actions depend on the exact equipment, its installed and shipped condition, the storage environment, and the supplier’s documented method.

The VSI spare-parts inventory guide provides the companion control for loose items: each stocked or received part should be matched to the selected machine, rotor build, drawing revision, and intended maintenance scope before its quantity or suitability is assumed.

Use a Pre-Installation Release Review, Not a Visual Guess

When the installation window approaches, perform a short release review that joins the delivery record to the current installation plan. The goal is not to run the crusher; it is to determine whether the identified, protected equipment and required documents can now transfer to the installation team without unresolved receiving or storage issues.

Confirm the current drawings and interfaces with the responsible supplier and project team. The selected VSI may have model-specific requirements for lifting, support, clearances, drive arrangement, motor base, guards, cable entries, access platforms, and commissioning. The drive-system alignment and guarding guide explains why a correct-looking motor or belt arrangement must still be checked against the installed machine’s approved arrangement.

1. Whether the main machine, drive items, controls, loose components, tools, and documents reconcile with the approved supply scope.
2. Whether any receiving exception, carrier claim, moisture concern, damaged protection, or storage observation remains open—and who owns closure.
3. Whether preservation status has been inspected against the applicable supplier instruction for the actual storage period.
4. Whether foundations, support steel, drainage, access, lifting path, interfaces, and electrical boundaries are released by the project team for installation.
5. Whether installation and commissioning personnel have the current model-specific documents and safe work method.

This makes uncertainty visible before a crane, installation crew, and downstream plant outage are committed. It does not replace the installation procedure or a final commissioning plan with actual material.

Buyer Checklist for VSI Crusher Delivery and Storage

• Match the delivery notice, packing list, expected package count, and equipment identification method to the current purchase scope.
• Confirm the responsible approved unloading and handling method, competent personnel, ground condition, exclusion zone, weather decision, and laydown location before moving the equipment.
• Photograph the main machine, each major package, protective coverings, and any visible condition concern before unpacking or carrier release.
• Record discrepancies precisely; retain package references and evidence, protect the affected item, and notify the responsible project contacts through the agreed process.
• Keep main equipment, motors, panels, crates, loose parts, and documents identifiable and traceable to the delivery record.
• Apply only the current, model-specific storage and preservation instructions supplied for the equipment and accessories; assign a named owner for periodic checks.
• Before installation, reconcile the equipment and open actions with current foundation, interface, access, drive, electrical, and document-release information.
• Reserve alignment, energization, rotation, feed, product sampling, capacity, and performance acceptance for the approved installation and commissioning method.

Send MVSI Crusher the Delivery and Installation Basis

For an order-specific receiving and storage discussion, send MVSI Crusher your raw material, feed size, output requirements, target capacity, site photos, delivery schedule, current drawings, storage conditions, installation interfaces, and budget range. We can help identify the documentation and handover points to confirm with the selected machine’s supplier instructions before unloading and installation are scheduled.

FAQ

What should be checked when a VSI crusher arrives on site?

Check the delivery identity, package count, visible condition, protective packing, supplied documents, and any accessible identification against the shipping documents and approved purchase scope. Photograph the delivered state and record discrepancies before the carrier leaves or packaging is removed.

Should a VSI crusher be unpacked immediately after delivery?

Not automatically. First follow the receiving record and the current supplier instructions for the ordered equipment. Some items may need to remain protected until the responsible team can inspect, store, or install them under the approved method.

How should a VSI crusher be stored before installation?

Use the current storage and preservation instructions from the equipment supplier for the specific machine and accessories. The suitable location, covers, inspection interval, re-preservation actions, and environmental limits depend on the equipment’s shipped condition and the expected storage environment.

What if the crusher or packaging looks damaged on arrival?

Photograph and document the observation with its package or equipment reference, protect the item from further exposure, and follow the project’s carrier, insurer, supplier, and contract-notification process. Do not assume that a visible mark or torn wrapping is harmless without responsible review.

Can a site team use any convenient lifting point on a VSI crusher?

No. Use only the approved handling method and lifting points for the selected equipment, with competent personnel and applicable site safety controls. Do not create a lift plan from a similar machine or an online image.

What is a pre-installation release review?

It is a recorded check that connects the received and stored equipment to the current installation plan. It reconciles the delivered scope, condition, preservation status, open exceptions, documents, foundations, interfaces, access, and responsible owners before installation starts.

Does receiving inspection prove that the VSI will meet its capacity?

No. Receiving inspection records condition and supply scope. Capacity, product grading, wear, power demand, vibration, and plant performance depend on the actual material, circuit, installation, settings, and controlled commissioning.

What information should buyers send before arranging VSI delivery and installation?

Send the selected equipment scope, shipping schedule, site photos, laydown conditions, raw material, feed size, output, target capacity, drawings, foundation/interface status, storage constraints, and budget range. This lets the supplier identify the order-specific handling and documentation points that need confirmation.
