A vibratory screen (or vibrating screen) is a machine used to separate materials by particle size using vibrations to sift and classify bulk materials. Here’s a breakdown of its working function:
1. Basic Components:
– Screen Deck/Mesh: Perforated surface where material is separated.
– Vibrator (Eccentric Shaft/Motor): Generates vibrations (linear, circular, or elliptical motion).
– Springs/Isolators: Absorb vibrations to prevent transmission to the structure.
– Frame: Supports the screen and vibratory mechanism.
– Feed Hopper & Discharge Chutes: For material input and output.

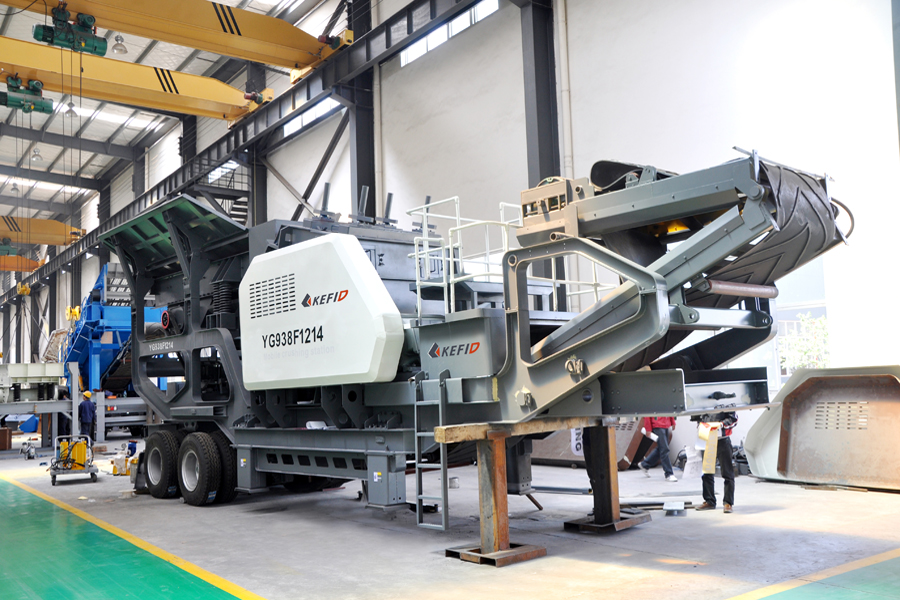

.jpg)
2. Working Principle:
1. Material Feeding:
– Bulk material is fed onto the screen deck via a hopper or conveyor.
2. Vibration Mechanism:
– The vibrator (motor with eccentric weights or unbalanced flywheel) generates high-frequency vibrations, causing the screen deck to shake.
– Common vibration types:
– Linear Motion (for precise sizing).
– Circular Motion (for high-capacity screening).
– Elliptical Motion (for sticky or wet materials).
3. Particle Separation:
– Smaller particles pass through the mesh openings (undersize/fines).
– Larger particles travel across the deck and exit as oversize.
– Multiple decks can be stacked for multi-size grading.
4. Discharge:
– Separated fractions are collected in different chutes or conveyors.
3. Key Functions:
– Classification/Sizing: Separates materials into different grades (e.g., gravel, sand, minerals).
– Scalping: Removes oversized contaminants before further processing.
– Dewatering/Dust Removal: Shakes off moisture or fines from wet/sticky m.jpg)
rials.
– Grading/Sorting: Used in food processing, recycling, mining, etc.
4. Factors Affecting Efficiency:
– Vibration Frequency & Amplitude: Adjustable for different materials.
– Screen Angle & Deck Inclination: Affects material flow rate.
– Mesh Size & Open Area: Determines cut-off particle size.
– Material Properties: Moisture, stickiness, density, and shape influence screening.
Applications:
✔ Mining & Aggregates
✔ Food Processing
✔ Recycling/Waste Management
✔ Pharmaceuticals
