Crushing minerals is a fundamental step in mineral processing and metallurgy. It involves reducing the size of raw ore or rocks to liberate valuable minerals from waste material (gangue) for further processing. Here’s a detailed breakdown:
1. Purpose of Crushing Minerals
– Liberation: Breaking ore into smaller particles to separate valuable minerals from gangue.
– Size Reduction: Preparing material for downstream processes (grinding, leaching, flotation, etc.).
– Efficiency: Smaller particles improve chemical reactivity (e.g., in leaching) or physical separation (e.g., gravity/magnetic separation).
.jpg)
2. Stages of Mineral Crushing
– Primary Crushing: Coarse reduction (e.g., jaw crusher, gyratory crusher) to reduce large rocks to ~6–12 inches.
– Secondary Crushing: Further reduction (e.g., cone crusher, impact crusher) to ~1–3 inches.
– Tertiary/Quaternary Crushing: Fine crushing (e.g., HPGR, vertical shaft impactors) for particles <1 inch.
3. Common Crushing Equipment
– Jaw Crushers: For hard, abrasive materials (primary stage).

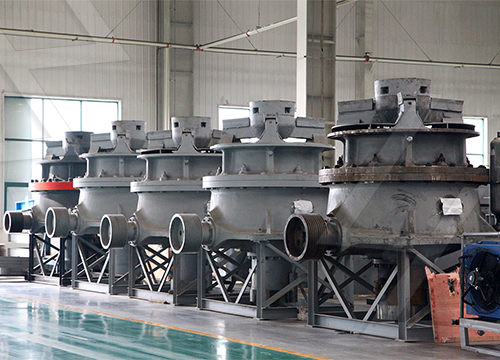

– Cone Crushers: Efficient for medium-hard to hard ores (secondary/tertiary).
– Impact Crushers: For softer materials (limestone, coal).
– High-Pressure Grinding Rolls (HPGR): Energy-efficient alternative for fine crushing.
– Hammer Mills/Rod Mills: Used in specific applications.
4. Key Considerations
– Ore Hardness: Dictates crusher type (e.g., gyratory for very hard ores).
– Moisture Content: Sticky ores may require pre-drying or specialized crushers.
– Throughput Capacity: Matched to mining output and downstream processes.
– Energy Effic.jpg)
cy: HPGRs save energy compared to traditional crushing.
5. Post-Crushing Steps
– Screening: Classifying crushed material by size.
– Grinding: Further reduction via ball mills/SAG mills for liberation.
– Separation: Flotation, magnetic separation, or leaching to extract minerals.
6. Challenges
– Wear and Tear: Abrasive ores damage crusher liners (require frequent maintenance).
– Dust Control: Needs suppression systems (water sprays, enclosures).
– Overgrinding: Excessive crushing wastes energy and complicates recovery.
