# Vermiculite Plant Production: A Comprehensive Guide
## Introduction
Vermiculite is a naturally occurring mineral widely used in horticulture, construction, and industrial applications due to its unique properties, including lightweight structure, high water retention, and thermal insulation. The production of vermiculite involves mining raw ore and processing it into usable forms through exfoliation—a heat treatment that expands the mineral into accordion-like flakes. This article explores the entire production process, from extraction to final product applications, while addressing environmental considerations and industry challenges.
—
## 1. Mining and Extraction
1.1 Geological Formation
Vermiculite forms through the hydrothermal alteration of biotite or phlogopite micas in ultramafic rocks. Major deposits are found in South Africa, China, Brazil, Russia, and the United States (particularly Montana). The mineral appears as layered sheets that expand dramatically when heated.
1.2 Open-Pit Mining Techniques
Most vermiculite is extracted via open-pit mining due to its shallow deposits. The process includes:
– Exploration: Geologists assess ore quality using core sampling and seismic surveys.
– Blasting & Removal: Overburden (surface soil) is removed before controlled blasting breaks up the rock.
– Transportation: Raw ore is hauled to processing plants for refinement.
—
## 2. Processing Vermiculite Ore

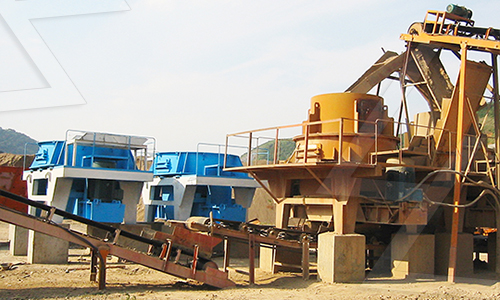

2.1 Crushing and Screening
The mined ore undergoes crushing to reduce particle size:
– Primary crushers break down large chunks into smaller fragments (~20 mm).
– Secondary crushers further refine particles (~5 mm).
– Vibrating screens separate vermiculite from impurities like quartz or feldspar.
2.2 Beneficiation (Purification)
To enhance purity:
– Froth flotation removes sulfide contaminants.
– Magnetic separation eliminates iron-bearing minerals.
The resulting concentrate contains 85–95% pure vermiculite flakes.
—
## 3. Exfoliation: The Key Expansion Process
Exfoliation transforms dense flakes into lightweight expanded vermiculite (EV):
3.1 Heating Mechanism
Vermiculite expands when rapidly heated above 900°C due to trapped water vaporizing between layers:
– Rotary or vertical furnaces ensure uniform heating (~10–30 seconds exposure).
3.2 Post-Heating Treatment
Expanded flakes are cooled before grading by size:
| Grade | Particle Size (mm) | Common Uses |
|——-|——————–|————-|
| Superfine | <0.5 | Seed germination |
| Fine | 0.5–1 | Hydroponics |
| Medium | 1–3 | Soil amendment |
| Coarse | >3 | Insulation |
—
## 4. Applications of Expanded Vermiculite
4.1 Horticulture & Agriculture (60% of global demand)
– Improves soil aeration and moisture retention in potting mixes.
– Used as a sterile medium for hydroponics and seedling propagation.
4.2 Construction Materials (25% demand)
– Lightweight aggregate in concrete and plaster for fireproofing structures (<0% shrinkage).
4.3 Industrial Uses (15% demand)
– Absorbent for hazardous spills (oil/chemicals).
—
## 5 Environmental & Safety Considerations
5 Asbestos Contamination Risks* *(Historical Context)*
Some deposits historically contained asbestos fibers—linked with respiratory diseases—but modern testing ensures compliance with OSHA/EPA regulations (<1% asbestos content allowed).
# Mitigation Measures Include:
✔ X-ray diffraction screening during mining stages
✔ Encapsulation techniques preventing airborne dust release
Additionally:
✔ Recycling initiatives repurpose construction waste back into new products
✔ Low-energy furnaces reduce carbon footprint (~30 kWh/ton required)
—
## Conclusion & Future Outlook
The global market ($400M annually*) continues growing alongside sustainable agriculture trends—especially organic farming where synthetic additives face restrictions (*Grand View Research estimates CAGR at ~6%). Innovations like nano-enhanced coatings could further diversify industrial uses beyond traditional sectors while stricter safety protocols ensure worker protection remains paramount throughout supply chains worldwide.*
