Stone crushing machines are essential equipment in mining, construction, and demolition industries. They break down large rocks, gravel, or other materials into smaller pieces for further processing. Here’s an overview of the most common types:
1. Types of Stone Crushing Machines
.jpg)
# A. Jaw Crusher
– Function: Primary crushing (coarse crushing).
– How it works: Uses compressive force between two jaws (fixed and movable).
– Best for: Hard and abrasive materials (granite, basalt).
– Output size: 150–350 mm.
# B. Impact Crusher
– Function: Secondary/tertiary crushing (medium to fine).
– How it works: Uses impact force from hammers/blow bars.
– Best for: Soft to medium-hard materials (limestone, concrete).
– Output size: 20–70 mm.

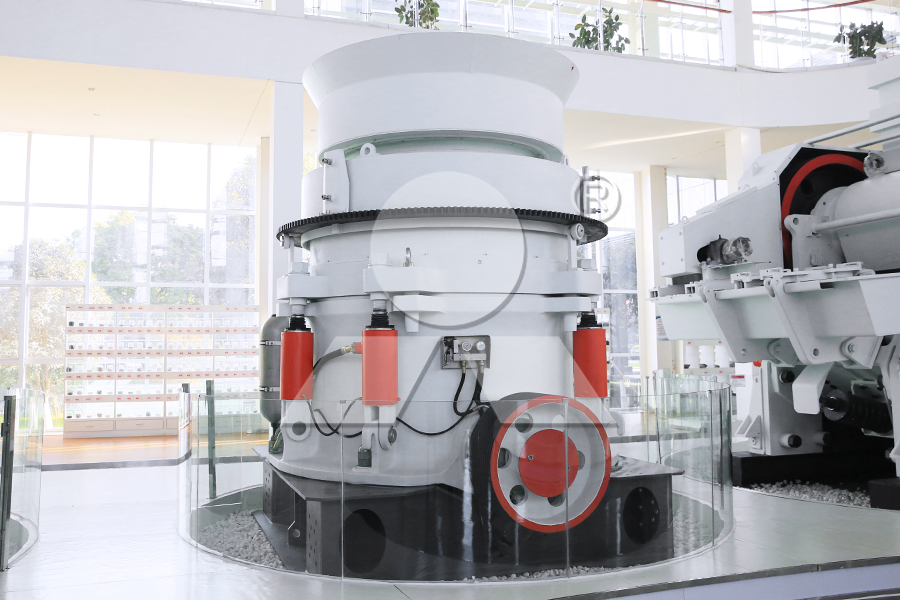

# C. Cone Crusher
– Function: Secondary/tertiary crushing (fine crushing).
– How it works: Rotating mantle compresses material against a concave bowl.
– Best for: Hard and abrasive stones (quartz, granite).
– Output size: 5–60 mm.
.jpg)
# D. Hammer Crusher
– Function: Medium/fine crushing.
– How it works: High-speed rotating hammers strike the material.
– Best for: Brittle materials (coal, limestone).
– Output size: <20 mm.
# E. Roll Crusher
– Function: Fine/crushing with low dust production.
– How it works: Two counter-rotating rollers crush the material.
– Best for: Soft to medium-hard rocks (clay, coal).
– Output size: 1–20 mm.
# F. Mobile Crushers
– Portable units combining jaw, impact, or cone crushers on tracks/wheels.
– Ideal for on-site crushing in construction and recycling.
2. Key Applications
– Mining & Quarrying
– Construction & Demolition
– Road & Railway Ballast Production
– Cement & Concrete Manufacturing
– Recycling (concrete, asphalt)
3. Choosing the Right Machine
Consider:
– Material hardness & abrasiveness
– Desired output size
– Production capacity needs
– Mobility requirements
