The production of quartz sand (also known as silica sand) involves several stages, including mining, crushing, screening, washing, drying, and sometimes additional processing like magnetic separation or flotation to achieve high purity. Below is an overview of the key production equipment used in quartz sand processing:
.jpg)
1. Mining Equipment
– Excavators & Loaders: Used to extract raw quartz ore from open-pit or underground mines.
– Dump Trucks: Transport raw quartz material to the processing plant.

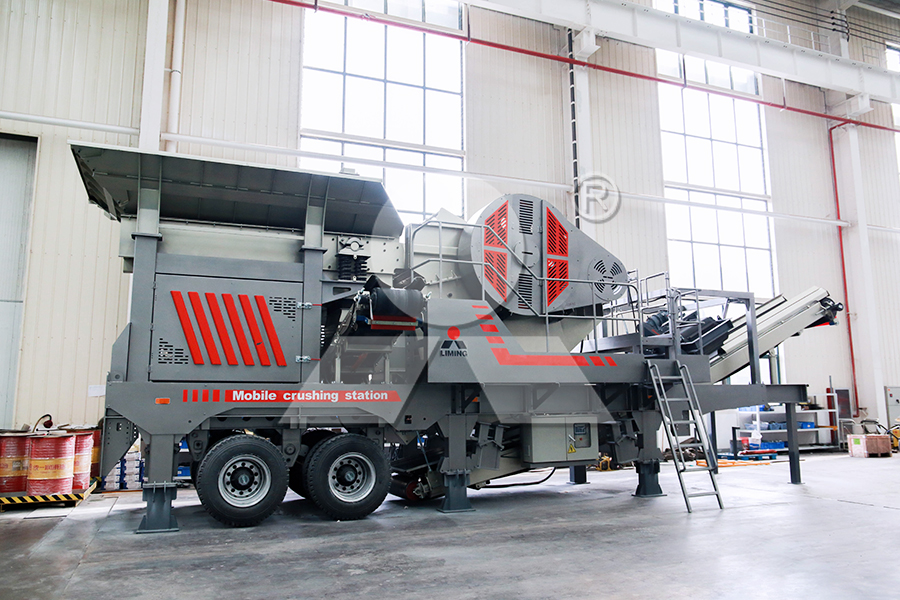

2. Crushing Equipment
Quartz ore is hard (Mohs hardness ~7), so robust crushers are required:
– Jaw Crusher (Primary crushing): Breaks large quartz rocks into smaller pieces (~50-100 mm).
– Cone Crusher / Impact Crusher (Secondary crushing): Further reduces size to ~10-30 mm.
– Vertical Shaft Impact (VSI) Crusher (Tertiary crushing): Produces finer particles (~1-5 mm) and improves grain shape.
3. Screening Equipment
– Vibrating Screen: Separates crushed quartz into different size fractions (e.g., coarse, medium, fine).
– Trommel Screen: Used for wet screening in some cases.
4. Washing & Scrubbing Equipment
Removes clay, dust, and impurities:
– Log Washer / Scrubber: Aggressively cleans quartz sand by attrition.
– Wheel Sand Washer: Rinses away fine particles and organic contaminants.
– Spiral Classifier: Separates sand from silt and water.
5. Drying Equipment
– Rotary Dryer: Reduces moisture content after washing.
– .jpg)
luidized Bed Dryer: For high-efficiency drying of fine quartz sand.
6. Purification & Beneficiation Equipment
For high-purity quartz sand (used in glass, electronics, solar panels):
– Magnetic Separator: Removes iron-bearing minerals (e.g., magnetite).
– Flotation Machine: Separates feldspar and mica from quartz.
– Acid Leaching Tanks (for ultra-high purity): Uses HCl/HF to dissolve impurities.
7. Grinding & Milling (for Powdered Silica)
– Ball Mill / Raymond Mill: Produces fine silica powder for specialty applications.
– Air Classifier Mill: For ultrafine silica production (<45
