Primary and secondary crushers are key components in the crushing process, used to reduce the size of large rocks, ores, or other materials for further processing. Here’s a breakdown of their roles and differences:
Primary Crushers
Purpose:
– First stage of size reduction in a crushing circuit.
– Handle large, raw materials directly from mining or quarrying (e.g., blasted rock, run-of-mine ore).
Common Types:
1. Jaw Crushers – Use compressive force; fixed and moving jaws crush material.
2. Gyratory Crushers – Similar to jaw crushers but with a conical head and larger capacity.
3. Impact Crushers (for softer materials) – Used when high reduction ratios are needed (e.g., limestone).
Key Features:
– High capacity & large feed opening.
– Robust construction to handle abrasive/hard materials.
– Output size typically 6–12 inches (150–300 mm).
—
Secondary Crushers
Purpose:
– Further reduce material after primary crushing.
– Produce smaller, more uniform sizes for final processing or tertiary crushing.
Common Types:

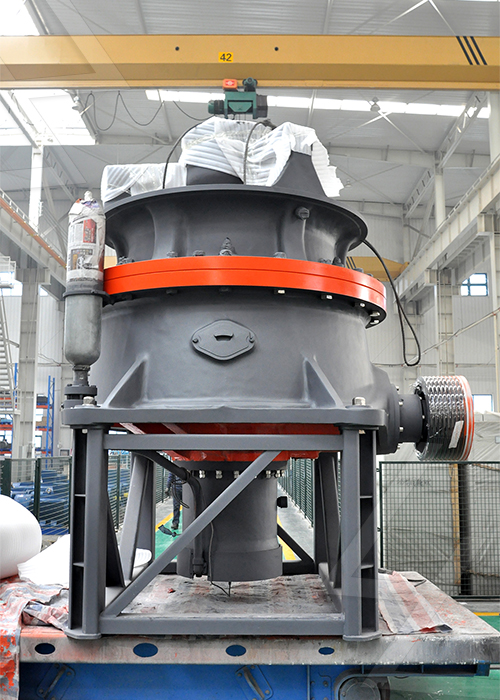

1. Cone Crushers – Use compression; ideal for hard/abrasive materials (granite, basalt).
2. Impact Crushers (Horizontal/Vertical Shaft) – Use impact force; good for softer/less abrasive rock (limestone, recycled concrete).
3. Roll Crushers – Compression-based; used for coal or mineral processing.
Key Features:
– Finer output than primary crushers (0.5–3 inches / 12–75 mm).
– Often operate in closed circuit with screens for better size control.
—
Comparison Table
| Feature | Primary Crusher | Secondary Crusher |
|——————|————————|————————|
| Input Size | Large (>40″) | Medium (6–12″) |
| Output Size | Coarse (6–12″) | Medium-Fine (0.5–3″) |
| Typical Use | Initial size reduction | Further refinement |
.jpg)
Selection Factors:
– Material hardness & abrasiveness (e.g., gyratory/jaw for hard rock, impact for softer rock).
– Required throughput and final
