Portable concrete crushing involves using mobile equipment to crush concrete debris (from demolition or construction waste) into reusable aggregate on-site. This process is efficient, cost-effective, and environmentally friendly, as it reduces landfill waste and transportation costs. Here’s a breakdown of key aspects:
1. Equipment Used
– Portable Crushers: Track-mounted or wheeled crushers (jaw, impact, or cone crushers) can be moved to the job site.

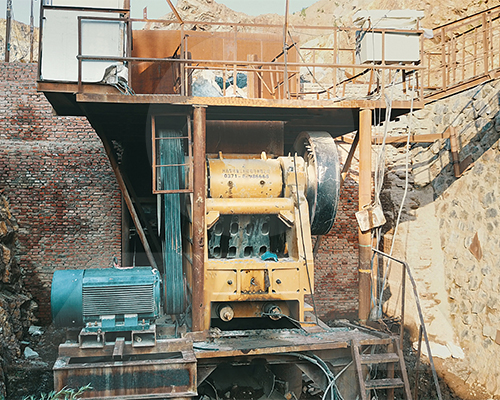

– Jaw Crushers: Ideal for primary crushing of large concrete chunks.
– Impact Crushers: Best for softer materials and producing finer aggregates.
– Cone Crushers: Suitable for secondary crushing and producing uniform-sized material.
– Screening Plants: Separate crushed concrete into different sizes (e.g., base material, gravel).
– Conveyors: Transport crushed material efficiently.
– Excavators/Loaders: Feed concrete into the crusher.
.jpg)
2. Process Steps
1. Site Preparation – Clear debris and set up the portable crusher.
2. Feeding Concrete – Load demolished concrete into the crusher using an excavator or loader.
3. Crushing – The machine breaks down concrete into smaller pieces (typically 1″-3″ or finer).
4. Screening – Separate crushed material into desired sizes (e.g., RCA—Recycled Concrete Aggregate).
5. Stockpiling/Reuse – Use recycled aggregate for new construction, road base, or drainage projects.
.jpg)
3. Benefits
– Cost Savings: Avoids landfill fees and reduces material transportation costs.
– Sustainability: Recycles waste into usable materials, reducing environmental impact.
– On-Site Efficiency: Eliminates the need to haul concrete to a fixed crushing facility.
– Versatility: Can process reinforced concrete (with rebar removal).
4. Applications of Recycled Concrete
– Road base/sub-base
– Driveways & parking lots
– Drainage projects
– New concrete mix (partial replacement of virgin aggregate)
5. Considerations
– Permits may be required for on-site crushing in some areas.
– Reinforced concrete may need pre-processing (rebar removal with magnets/shears).
– Dust control measures (water sprays, enclosures) may be necessary.
6. Rental vs. Hiring a Service
– If crushing is infrequent, hiring a mobile crushing contractor may be more economical than purchasing equipment.
– For large-scale
