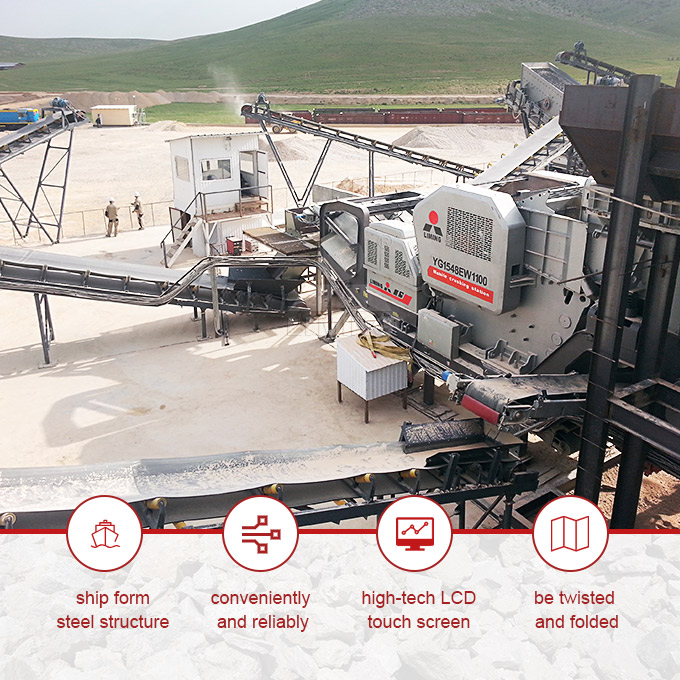

A mobile crusher plant (also known as a portable crushing plant) is a flexible and efficient solution for on-site crushing and screening. Below are the typical specifications for a mobile crusher plant, including key components and technical details:
.jpg)
1. General Specifications
– Type: Track-mounted or wheel-mounted (trailer-based).
– Power Source: Diesel engine or electric motor (depending on model).
– Mobility: Self-propelled or towable.
– Capacity Range: 50–500 TPH (varies by model and material type).
– Feeding Size: Up to 800mm (depends on crusher type).
– Output Size: Adjustable (e.g., 0–60mm for aggregates).
2. Crusher Types in Mobile Plants
| Crusher Type | Max Feed Size | Output Range | Typical Use |
|————-|————–|————-|————|
| Jaw Crusher | 500–800mm | 50–200mm | Primary crushing (hard rocks) |
| Impact Crusher | 300–500mm | 0–40mm | Secondary/tertiary crushing |
| Cone Crusher | 200–350mm | 5–30mm | Fine crushing (aggregates) |
| Hammer Crusher | ≤300mm | ≤25mm | Soft materials (limestone, coal) |
.jpg)
3. Screening System
– Vibrating Screen: Single-deck, double-deck, or triple-deck.
– Screen Size Options: 3–5m² per deck.
– Output Fractions: Multiple sizes (e.g., 0–5mm, 5–20mm, 20–40mm).
4. Conveyor System
– Main conveyor belt width: 650–1200mm.
– Side conveyor (for rejected material).
– Radial conveyor (for stockpiling).
5. Engine & Power
– Diesel engine: 150–400 kW (~200–500 HP).
– Electric motor option: Requires external power supply.
– Hydraulic system for adjustments and mobility.
6. Dimensions & Weight
| Model Type | Length × Width × Height (approx.) | Weight |
|————|———————————-|——–|
| Small Jaw Crusher Plant | ~12m × 2.5m × 3.5m | ~30 tons |
| Large Cone Crusher
