Crushing and grinding are essential steps in the processing of metal ores to extract valuable metals. These processes reduce the size of the ore particles, making it easier to separate the metal from the surrounding rock and minerals. Here’s an overview of how metal ores are crushed and ground:
—
1. Crushing
Crushing is the first step in reducing the size of the ore. Large chunks of ore are broken down into smaller pieces using crushers.
# Types of Crushers:

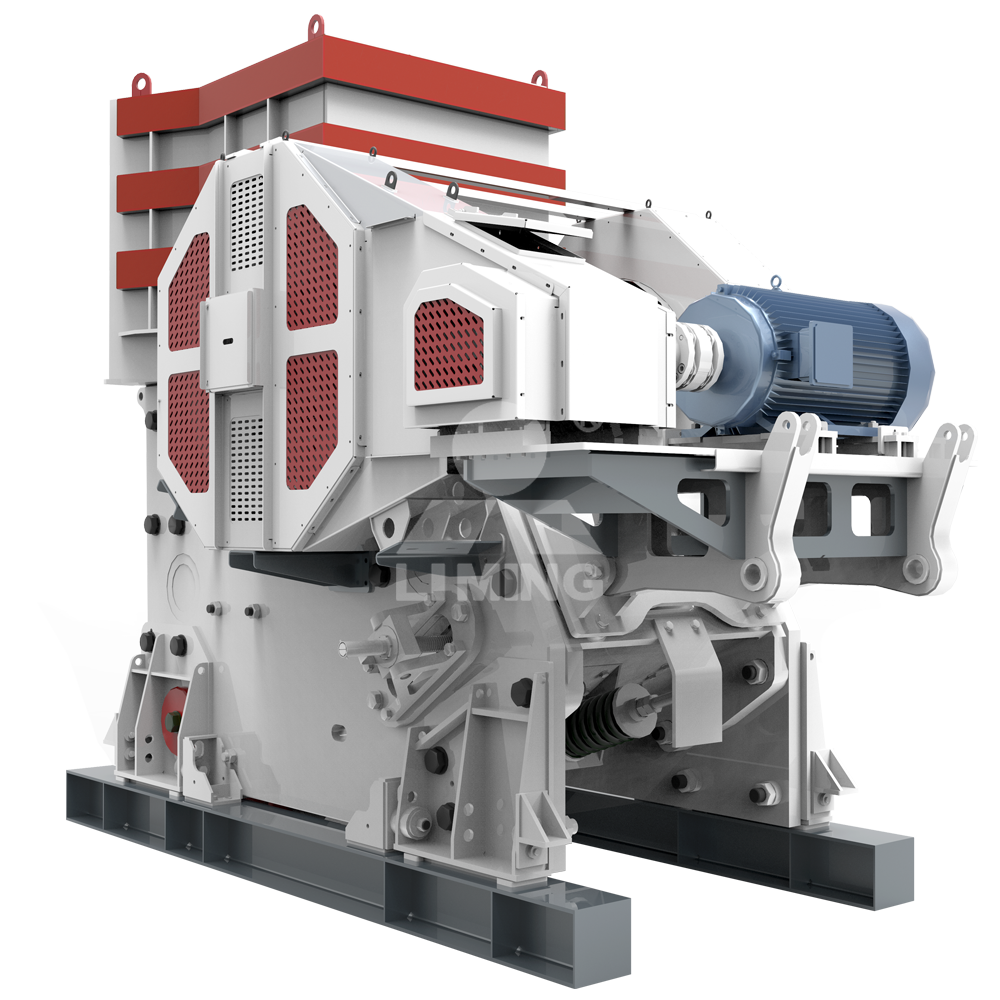

– Jaw Crusher: Uses compressive force to break large rocks into smaller pieces.
– Gyratory Crusher: Similar to a jaw crusher but more efficient for larger volumes of ore.

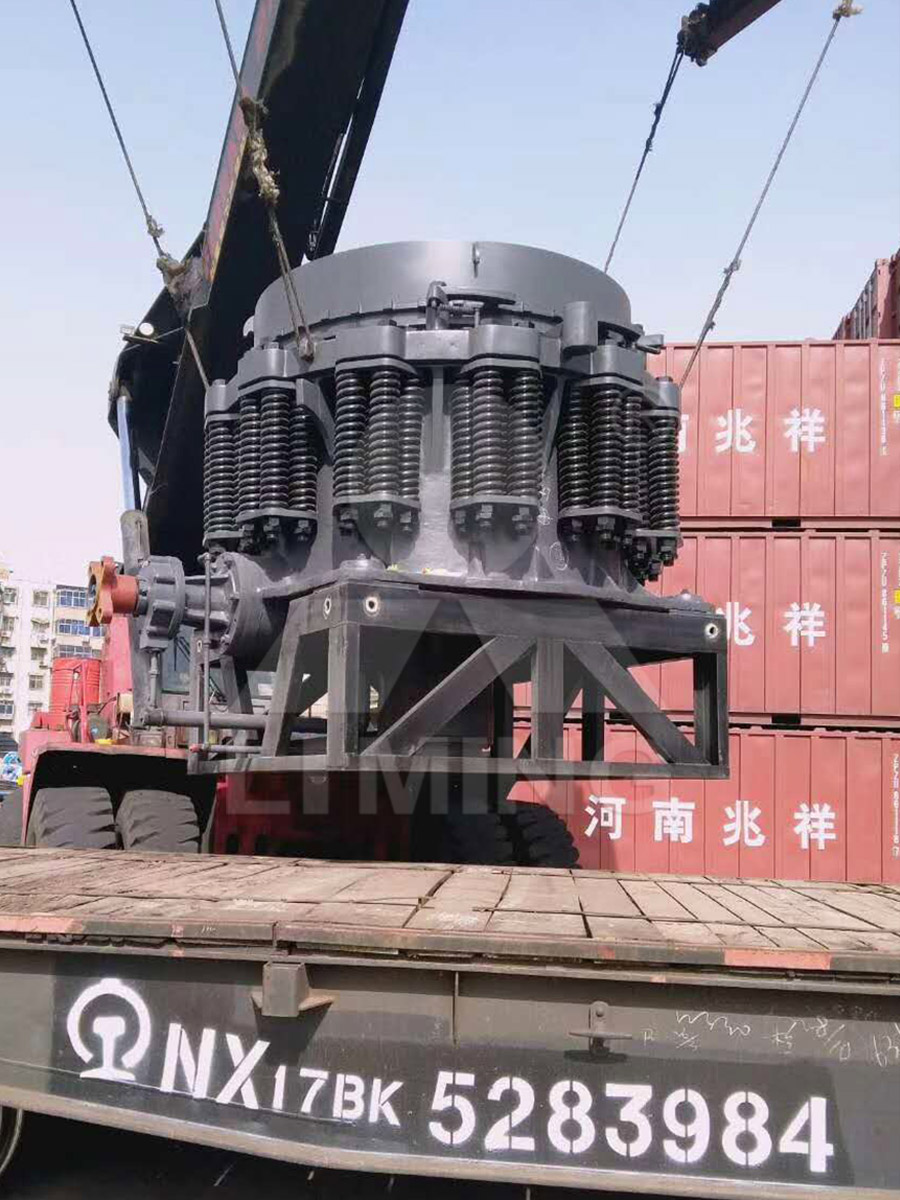

– Cone Crusher: Used for secondary crushing, producing finer particles.
– Impact Crusher: Uses impact force to break ore into smaller fragments.
# Process:
– The ore is fed into the crusher, where it is compressed or impacted until it breaks into smaller pieces.
– Crushed ore is then screened to separate particles of the desired size.
—
2. Grinding
Grinding further reduces the size of the crushed ore into fine particles, often to a powder-like consistency. This increases the surface area, making it easier for chemical processes (like leaching or flotation) to extract the metal.
# Types of Grinding Mills:
– Ball Mill: Uses steel balls to grind the ore into a fine powder.
– Rod Mill: Uses steel rods instead of balls, suitable for coarser grinding.
– SAG Mill (Semi-Autogenous Grinding Mill): Combines grinding media (balls) with the ore itself for grinding.
– Vertical Roller Mill: Efficient for fine grinding and drying of ores.
# Process:
– The crushed ore is fed into a grinding mill along with water (for wet grinding) or air (for dry grinding).
– The grinding media (balls, rods, or ore itself) crush and grind the ore into finer particles.
– The ground materia.jpg)
s then classified using screens or cyclones to separate particles by size.
—
3. Purpose of Crushing and Grinding
– Increase surface area for chemical reactions during metal extraction.
– Liberate valuable minerals from waste rock (gangue).
– Prepare the ore for downstream processes like flotation, leaching, or smelting.
—
4. Considerations
– Energy consumption: Crushing and grinding are energy-intensive processes.
– Particle size: The desired fin
