Manganese ore mining and processing involve several stages to extract manganese from the earth and refine it into usable forms. Here’s a detailed breakdown of the process:
—
1. Manganese Ore Mining
Manganese is typically mined through open-pit or underground mining methods, depending on the deposit depth and geology.
# A. Exploration & Site Preparation
– Geological Surveys: Identify manganese-rich deposits using geophysical and geochemical methods.
– Drilling & Sampling: Confirm ore grade (typically 30-50% Mn for high-grade ores).
– Infrastructure Setup: Roads, power, water, and processing facilities are established.
.jpg)
# B. Mining Methods
1. Open-Pit Mining (Most common for shallow deposits):
– Overburden (topsoil/rock) is removed.
– Ore is extracted using excavators, loaders, and haul trucks.
– Examples: South Africa’s Kalahari Basin, Australia’s Groote Eylandt.
2. Underground Mining (For deep deposits):
– Shafts or tunnels are dug to reach the ore.
– Used in Gabon (Moanda mine) and Brazil.
—
2. Manganese Ore Processing
After extraction, the ore undergoes several stages to upgrade manganese content.

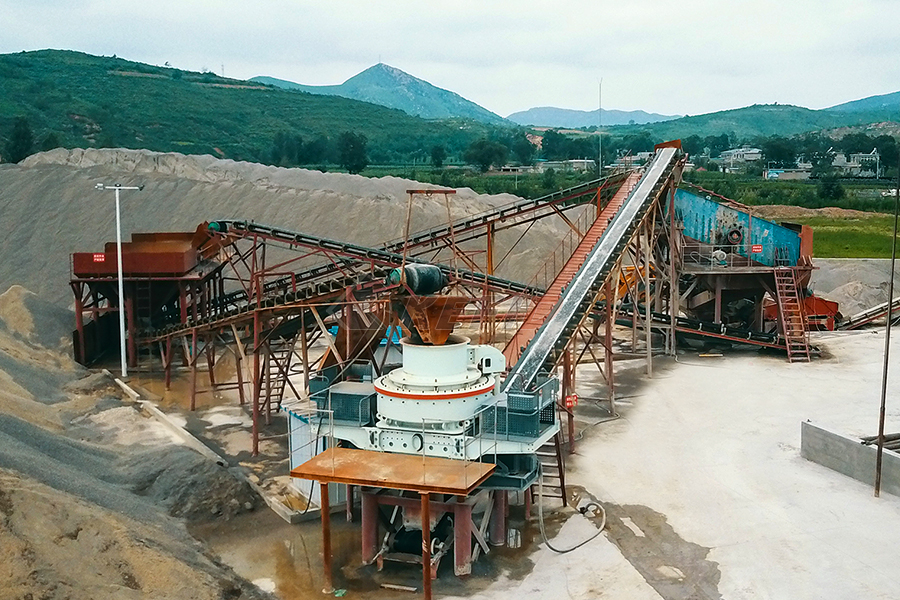

# A. Crushing & Screening
– Primary crushing (jaw crushers) → Secondary crushing (cone crushers).
– Screening separates fines from coarse ore.
# B. Beneficiation (Upgrading Mn Content)
Methods depend on ore type:
1. Washing & Gravity Separation:
– Removes clay/silt via scrubbers.
– Jigging or spirals separate manganese from lighter gangue.
2. Magnetic Separation:
– Used for ferromanganese ores (high iron content).
– Low-intensity magnets remove iron impurities.
3. Flotation:
– For fine-grained ores; chemicals separate Mn minerals from silicates.
4. Heavy Media Separation:
– Dense liquid separates high-grade Mn from waste rock.
# C. Smelting & Refining
1. Blast Furnace/Electric Arc Furnace (EAF):
– Produces ferromanganese (~80% Mn) or silicomanganese (~65% Mn).
– Used in steelmaking as an alloying agent.
2. Hydrometallurgical Processing (For battery-grade Mn
