Here’s a simplified flow chart for a typical crushing plant used in aggregate production or mining operations:
Flow Chart: Crushing Plant Process
“`
1. [Start]
↓
2. [Raw Material (e.g., blasted rock, quarry stone, or mined ore)]
↓

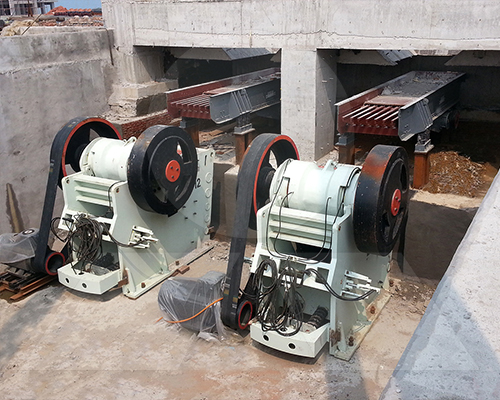

3. [Primary Crushing] (Jaw Crusher / Gyratory Crusher)
↓
4. [Conveyor Belt to Secondary Crushing]
↓
5. [Secondary Crushing] (Cone Crusher / Impact Crusher)
↓
6. [Screening] (Vibrating Screen) → Oversize → Return to Secondary Crushing
↓ (Undersize proceeds)
7. [Tertiary Crushing (if needed)] (VSI Crusher / Fine Cone Crusher)
↓
8. [Final Screening & Classification] → Multiple Product Sizes (e.g., 0-5mm, 5-20mm, 20-40mm)
↓
9. [Stockpiling / Storage] (Bins or Piles for Different Grades)
↓
10. [End – Ready for Transport or Further Processing]
“`
Key Components Explained:
1. Primary Crushing: Reduces large rocks to ~6–12 inches.
2. Secondary Crushing: Further breaks down material to ~1–3 inches.
3. Screening: Separates crushed material by size; oversize is recycled.
4. Tertiary Crushing: Produces finer aggregates or manufactured sand.
5. Stockpiling: Sorted materials are stored for dispatch or further use.
.jpg)
Optional Steps:
– Washing & Scrubbing (for removing clay/dust).
– Dust Control Systems (sprayers, bag filters).
– Recycling Loop (returning oversize material to earlier stages).
