Cyclones are commonly used in the processing of limestone for various purposes, including classification, separation, and dust collection in industries such as cement production, mining, and mineral processing. Below are key applications of cyclones for limestone:
1. Classification & Separation (Air Classification)
– Purpose: Separate fine limestone particles from coarse ones.
– Process: A cyclone classifier uses centrifugal force to sort particles by size.
– Finer particles exit through the top (overflow).
– Coarser particles drop to the bottom (underflow).
– Applications:
– Pre-classification before grinding (e.g., in ball mills).
– Product size control in limestone powder production.
2. Dust Collection (Cyclone Dust Separators)
– Purpose: Remove limestone dust from air streams in crushing, grinding, or kiln operations.
– Process:
– Dust-laden air enters tangentially, creating a vortex.
– Heavy limestone particles are thrown outward and collected at the bottom.
– Clean air exits through the top.
– Applications:
– Cement plants (raw mill & kiln exhaust systems).

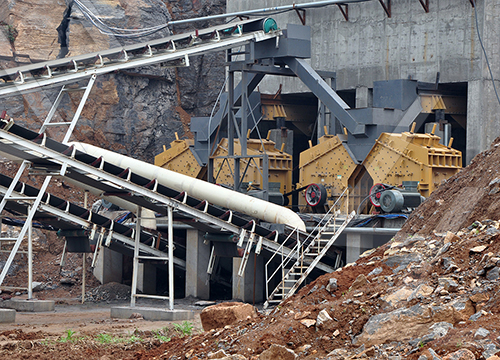

– Limestone quarrying & crushing operations.
.jpg)
3. Preheating & Calcination (Cyclone Preheater in Cement Kilns)
– Purpose: Heat limestone before entering the kiln for calcination (CaCO₃ → CaO + CO₂).
– Process:
– Multi-stage cyclone preheaters transfer heat from kiln exhaust gases to raw limestone meal.
– Improves energy efficiency in cement production.
4. Cyclone vs. Other Separators for Limestone
| Feature | Cyclone | Bag Filter | Electrostatic Precipitator |
|———|———|————|—————————-|
| Efficiency | Good for >5µm particles | High (>99% for fines) | Very high |
| Pressure Drop | Moderate | High | Low |
| Maintenance | Low | High (bag replacement) | Medium |
| Cost | Low | Moderate-High | High |
Key Considerations When Using Cyclones for Limestone
– Particle Size: Best suited for particles >5µm; finer particles may require additional filters.
– Abrasion Resistance: Limestone is abrasive; cyclones should have wear-resistant linings.
– Moisture Content: .jpg)
h moisture can cause clogging; pre-drying may be needed.
