Crushers for Quarry: Specifications and Key Considerations
Quarrying operations rely heavily on crushers to break down large rocks into smaller, manageable sizes for construction, road building, and other industrial applications. Selecting the right crusher requires a thorough understanding of quarry specifications, material characteristics, and operational demands. Below is an overview of common crusher types and their key specifications for quarry applications.
1. Types of Crushers Used in Quarries
# A. Jaw Crushers
– Primary Crushing: Ideal for hard, abrasive materials like granite and basalt.
– Key Specs:
– Feed opening size (e.g., 1,000 x 800 mm).
– Capacity: 100–1,500 tons/hour.
– Power: 75–400 kW.
– Adjustable discharge setting (50–250 mm).

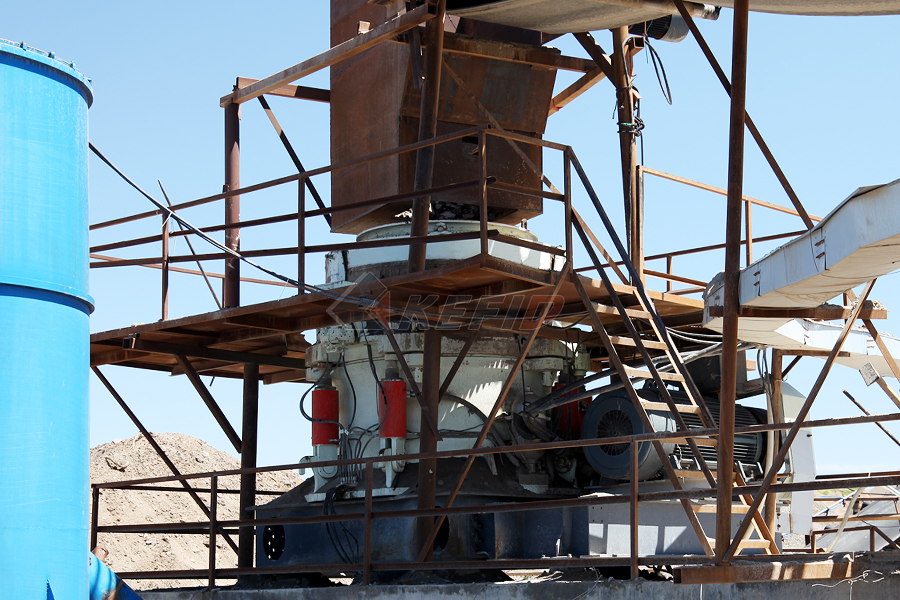

# B. Cone Crushers
– Secondary/Tertiary Crushing: Suited for medium-hard to hard materials (e.g., limestone, quartzite).
– Key Specs:
– Max feed size: ≤80% of the crusher’s intake width.
– Capacity: 50–1,200 tph.
– Hydraulic adjustment for precise output control (10–60 mm).
# C. Impact Crushers (HSI/VSI)
– Versatile Applications: Best for softer or less abrasive materials (e.g., limestone, recycled concrete).
– Key Specs:
– Rotor speed: 500–1,200 RPM (affects particle shape).
– Capacity: Up to 500 tph.
– Output gradation control via adjustable aprons/anvils.
# D. Gyratory Crushers
– Large-Scale Primary Crushing: High-capacity processing for massive quarries (>5,000 tph).
– Key Specs:
– Feed opening: Up to 1,500 mm.
– Continuous operation with high reduction ratios (6:1 to 9:1).
2. Critical Quarry-Specific Specifications
When selecting a crusher for quarrying, consider these factors:
# A. Material Properties
– Abrasiveness (e.g., silica content affects wear parts lifespan).
– Compressive strength (e.g., >250 MPa requires robust jaw/
