An iron ore beneficiation plant is a facility designed to improve the economic value of iron ore by removing impurities and increasing its iron content through various physical and chemical processes. The goal is to produce a higher-grade concentrate suitable for steelmaking or pelletizing.
Key Processes in an Iron Ore Beneficiation Plant
1. Crushing & Screening

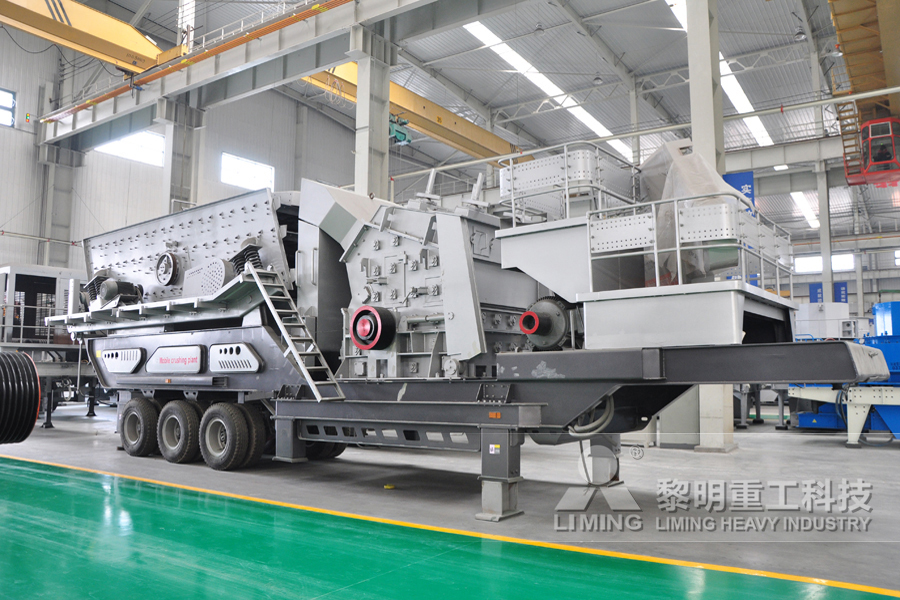

– Large chunks of iron ore are crushed into smaller pieces using jaw crushers, cone crushers, or impact crushers.
– Screens separate the ore into different size fractions for further processing.
2. Grinding (Comminution)
– Ball mills or rod mills grind the crushed ore into fine particles to liberate iron minerals from gangue (waste material).
3. Washing & Scrubbing
– Removes clay, loose silica, and other contaminants through water jets and attrition scrubbers.
4. Gravity Separation
– Uses density differences to separate heavier iron minerals (hematite/magnetite) from lighter gangue minerals via spirals, jigs, or shaking tables.
5. Magnetic Separation
– Magnetite ores are processed using low-intensity magnetic separators (LIMS).
– Hematite ores may require high-intensity magnetic separation (HIMS) for finer particles.
6. Flotation
– Chemicals (collectors, frothers) are added to selectively separate iron-bearing minerals from silica and alumina through froth flotation.
7. Thickening & Filtration
– Water is removed from the slurry using thickeners and filters to produce a concentrated iron ore product.
8. Tailings Management
– Waste material (tailings) is disposed of in an environmentally safe manner, often stored in tailings dams or reprocessed for residual iron.
Types of Iron Ore Beneficiation Plants
– Magnetite Beneficiation: Primarily uses magnetic separation due to its natural magnetic properties.
– Hematite Beneficiation: Often requires gravity separation, flotation, or high-intensity magnetic separation.
– Goethite/Limonite Beneficiation: May involve roasting or advanced techniques due to lower iron content.
.jpg)
Final Products
– High-grade iron ore concentrate (~60–67% Fe).
– Pellets (for .jpg)
st furnaces or direct reduction).
– Sinter feed (for sintering plants).
Challenges in Iron Ore Beneficiation
– High silica
