The aggregate crusher process involves several stages to break down large rocks into smaller, usable aggregates for construction, road building, and other applications. Here’s a step-by-step breakdown:
.jpg)
1. Extraction (Quarrying)
– Large rocks are extracted from quarries or pits using drilling, blasting, or excavating equipment.
2. Primary Crushing
– Large rocks (up to 1 meter or more) are fed into a primary crusher (e.g., jaw crusher or gyratory crusher).
– Output: Coarse aggregates (~150–300 mm).
3. Secondary Crushing
– Smaller rocks from the primary crusher go to a secondary crusher (e.g., cone crusher or impact crusher).
– Output: Medium-sized aggregates (~20–70 mm).
4. Tertiary Crushing (Optional)

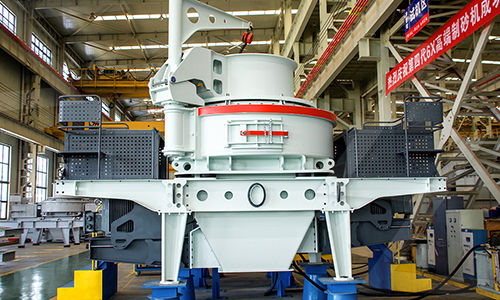

– For finer aggregates, a tertiary crusher (e.g., vertical shaft impactor) may be used.
– Output: Fine aggregates (~5–20 mm).
5. Screening & Sorting
– Crushed material passes through vibrating screens to separate sizes (e.g., gravel, sand). .jpg)
Oversized material may be recirculated for further crushing.
6. Washing (Optional)
– Aggregates may be washed to remove dust and impurities using log washers or sand screws.
7. Stockpiling & Distribution
– Final aggregates are stored in stockpiles before being transported for use in concrete, asphalt, or road base.
Types of Crushers Used:
| Crusher Type | Purpose | Output Size |
|————-|———|————|
| Jaw Crusher | Primary crushing | 150–300 mm |
| Cone Crusher | Secondary crushing | 20–70 mm |
| Impact Crusher | Secondary/Tertiary | 10–50 mm |
| VSI Crusher | Fine crushing/sand-making | <5 mm |
Key Considerations:
– Hardness of rock determines the type of crusher needed.
– Moisture content affects screening efficiency.
– Dust control systems may be required for environmental compliance.
